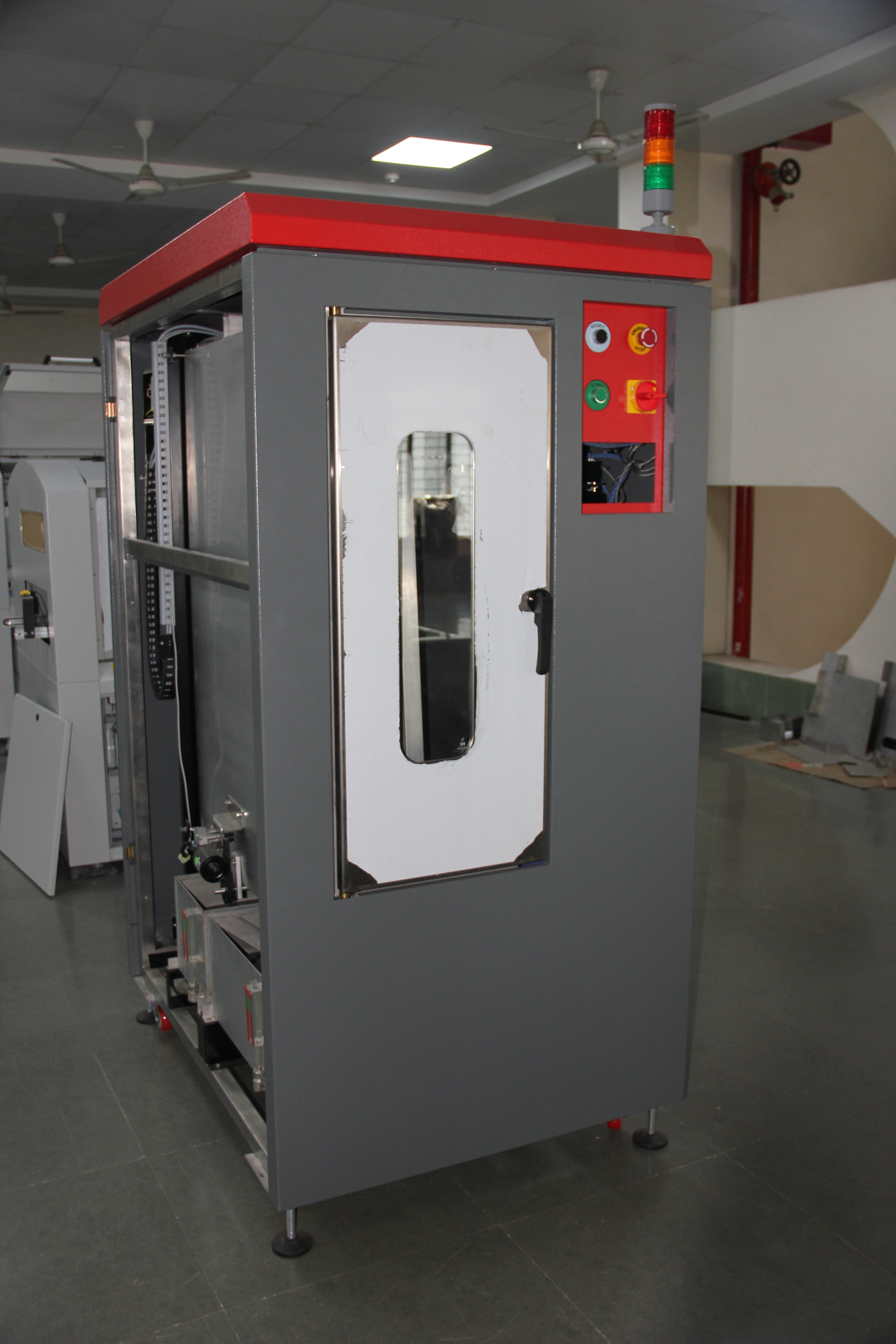

Stencil Cleaning Machine

Rs. 10lacs onwards / piece (approximate price)

Get Latest Price | Download Brochure

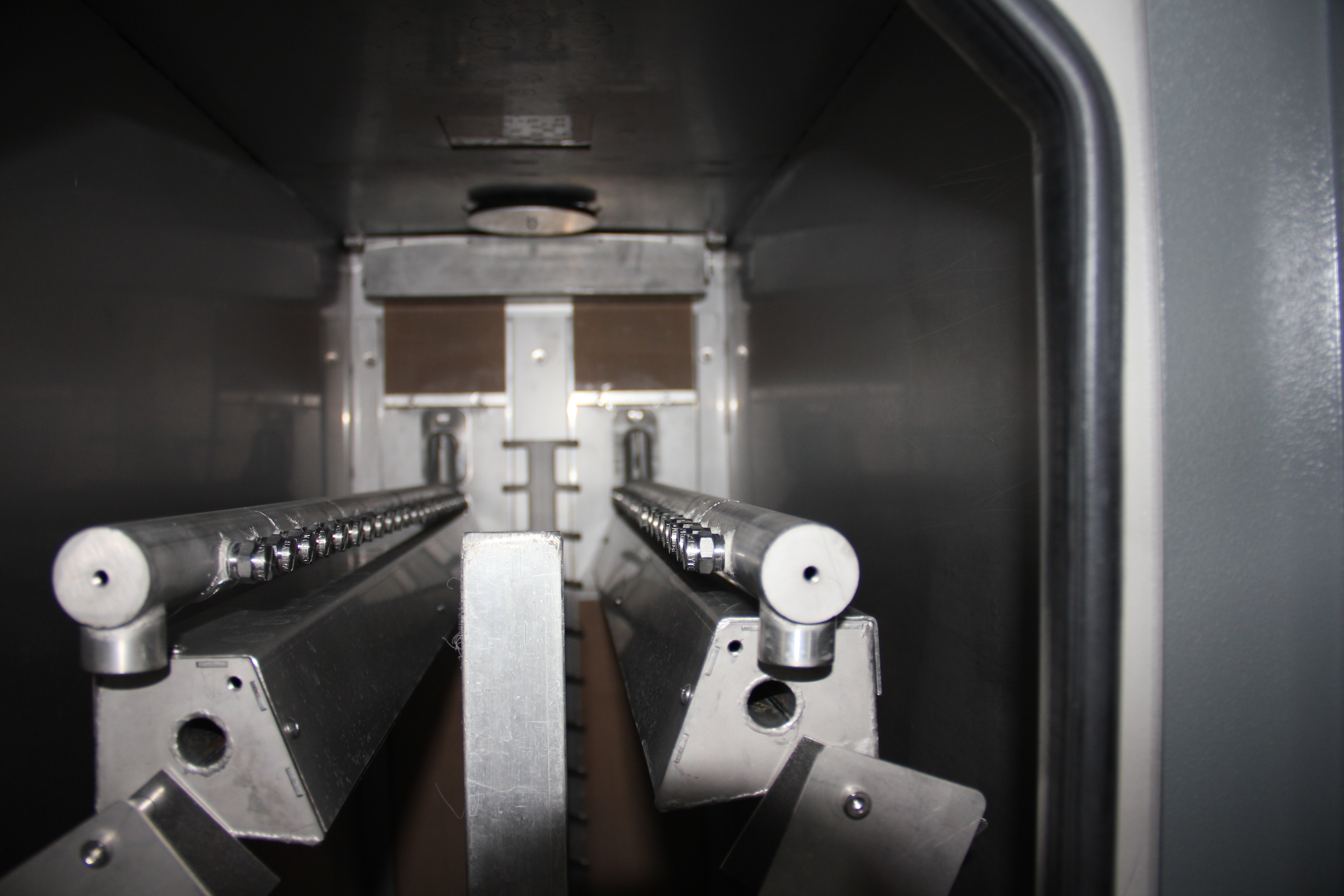

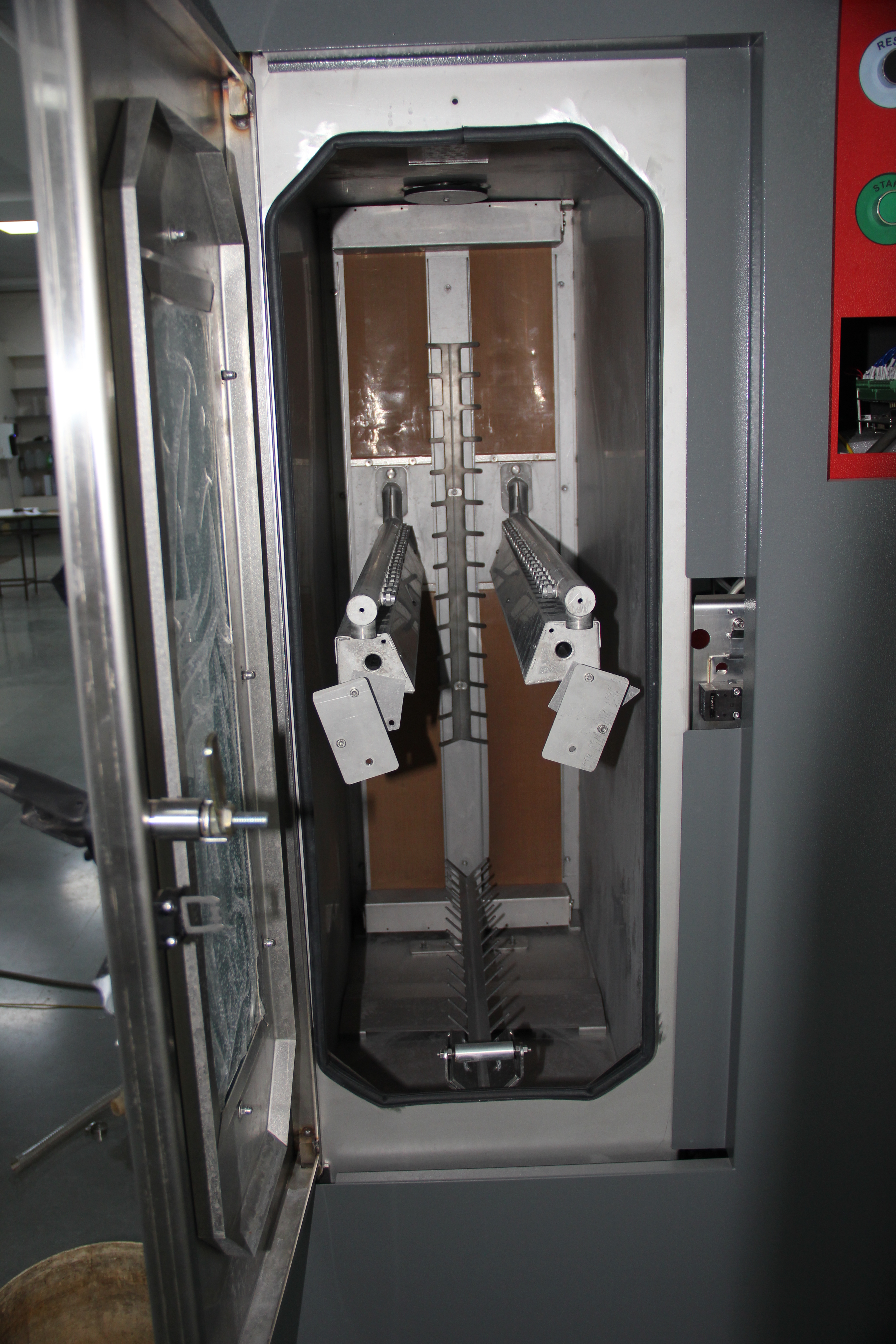

  1. Machine can be used for adhesive glue or solder paste stencil. Spray in air with low pressure spraying nozzles.
  2. Adjustable vertical stroke height.
  3. Air knife with heater.
  4. Single tank washing, two tank washing and rinsing option



Frequency
50 Hz
Machine dimension 950 mm x 1250 mm x 1850 mm
Voltage 220 V
Machine Type Automatic
Country of Origin Made in India
Material SS
Suitable for stencil 29" X 29"
Cleaning cycle time  10mins
Machine size (950L X 1250W X 1850H)mm
Weight  360 Kgs
Voltage  415V 3 Phase




Yes, I am interested Get Best Quote

For any more queries you can send us a message or explore the FAQs

Reviews & Ratings

Similar Products

Explore our other categories

FAQs

Everything you need to know about our product & services. If you don’t find what You are looking for, please send us a message here

You can call us directly or use the Yes, I'm interested button found in each product details section. For any doubts or clarifications you can also send us message here & our team will get in touch with you soon.

In wave soldering, PCBs are soldered by passing them through a wave of solder. But whereas in reflow soldering, hot air is used to solder the electronic components on the board.

Wave soldering is ideal for soldering THT (Through Hole Technology) assembly. Besides, the process is affordable and can solder bulk PCBs in a short time. Hence, it is preferable for commercial soldering.

Wave soldering is not suitable for soldering surface-mounted components. Besides, other soldering techniques such as reflow soldering are preferred over the wave soldering technique. Hence, its use has decreased considerably in recent years.

When the temperature of the board increases suddenly, it will go into a thermal shock leading to its failure. To prevent this, the board undergoes a preheating process that raises its temperature gradually. Also most of thee fluxes get active at elevated temperatures hence preheating is important.

  • 1. Fast
  • 2. Saving of solder metal
  • 3. Better quality solder joint
