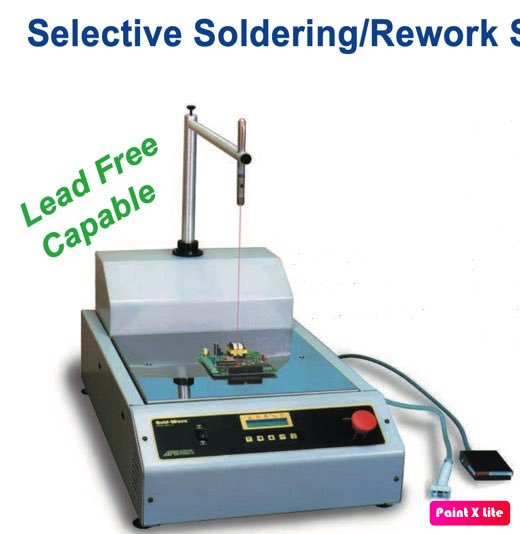

This is table- top selective soldering machine. The machine has programmable solder temp, wave height, wave duration. Solder wave fountain is created thru various sizes of nozzles suitable for different components. PCB is kept on lazer beam guided location on table, wave command is given by foot switch, solder wave touches component form below for programmed time. This machine is also used as thru hole PCB rework station.
| Power | 120 VAC, 60 Hz, 15 A optional 220 VAC, 50/60 Hz, 8 A |
| Max solder temp | 6620F (3500C) |
| Solder Capacity | 50 lbs (23 Kg) |
| Compressed Air | (MW-10A only) : 60 PSI (4 bar) |
| Dimensions | 16”x 26”x17” (406 x 660 x 432 mm) |
| Warm-up time Approx | 30-45 min |
| Weight | 30 lbs empty (13.5 kg), 80 lbs (36 Kg) with solder |
| MW-10 | Solder Fountain |
| MW-10A | Solder Fountain with blow - through air nozzle |

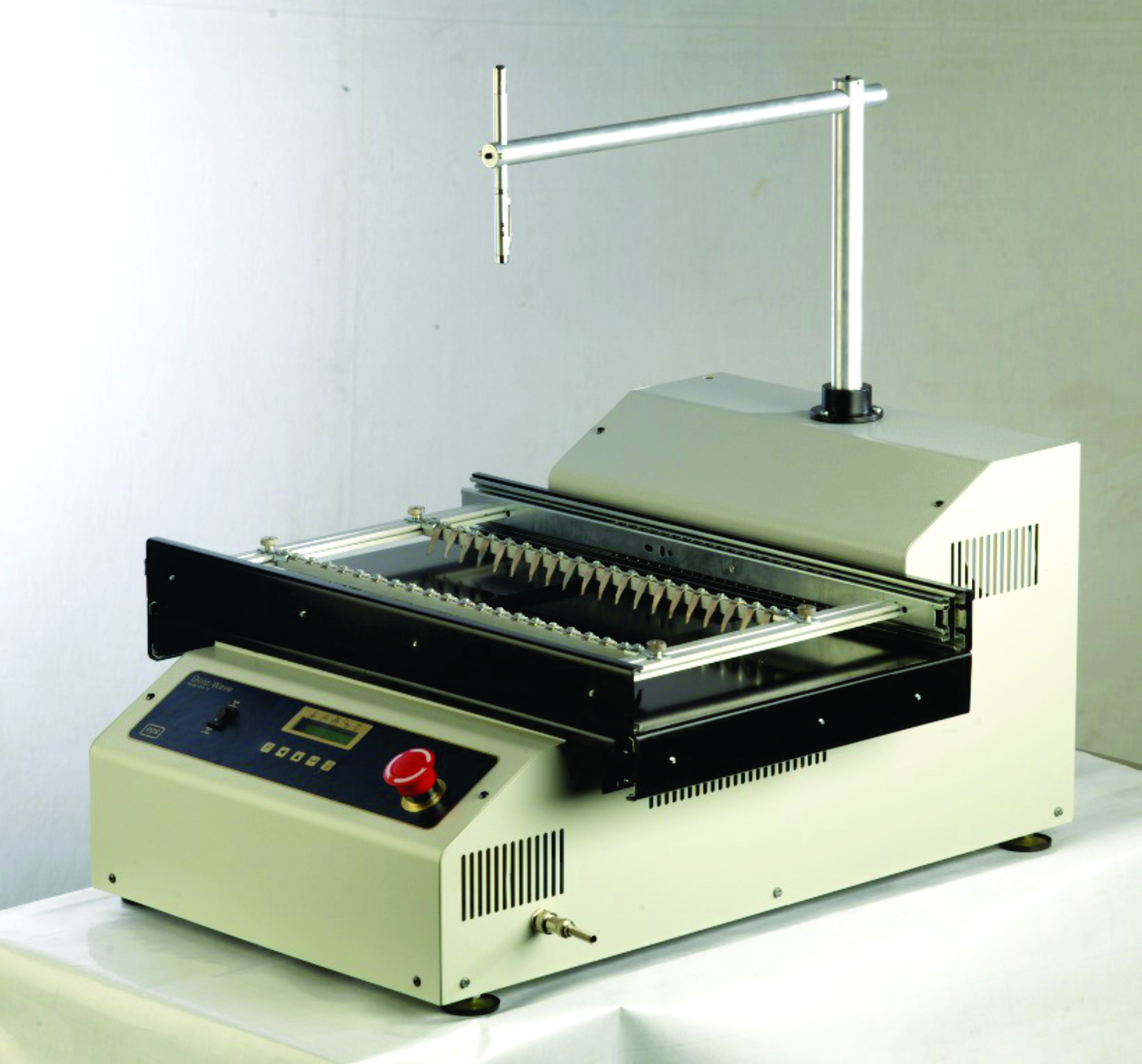

| MW-UBF | Universal X, Y, & Z Board Fixture Option for board sizes up to 11” x 16.5” (280 x 420 mm) |
For any more queries you can send us a message or explore the FAQs
User Satisfaction
100%
100%
100%
What Customers Said
Everything you need to know about our product & services. If you don’t find what You are looking for, please send us a message here
You can call us directly or use the Yes, I'm interested button found in each product details section. For any doubts or clarifications you can also send us message here & our team will get in touch with you soon.
In wave soldering, PCBs are soldered by passing them through a wave of solder. But whereas in reflow soldering, hot air is used to solder the electronic components on the board.
Wave soldering is ideal for soldering THT (Through Hole Technology) assembly. Besides, the process is affordable and can solder bulk PCBs in a short time. Hence, it is preferable for commercial soldering.
Wave soldering is not suitable for soldering surface-mounted components. Besides, other soldering techniques such as reflow soldering are preferred over the wave soldering technique. Hence, its use has decreased considerably in recent years.
When the temperature of the board increases suddenly, it will go into a thermal shock leading to its failure. To prevent this, the board undergoes a preheating process that raises its temperature gradually. Also most of thee fluxes get active at elevated temperatures hence preheating is important.
